110 Series
110 SERIES TERMINALS
SPECIFICATIONS
|
Material |
Connector |
- |
| Male Terninal |
BRASS |
| Female Terninal |
BRASS OR COPPER ALLOY |
| Operating Temperature Range |
-40°C ~ +125°C |
| Voltage Drop |
5mV/A |
| Isolation Resistance |
- |
| Dielectric Resistance |
- |
| Applicable Wire Size |
0.3mm2 ~ 2.0mm2 (22AWG~14AWG) |
| Maximum Electric Current |
25A |
|
|
TERMINAL
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |

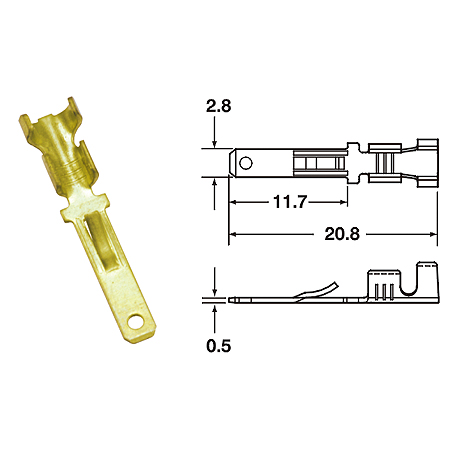

| ◎MM110-02B9 |
20-16 |
0.5-1.4 |
Brass |
None |
10000 |
CDM-98003-M |
CDT-98003-M |
|
|
|

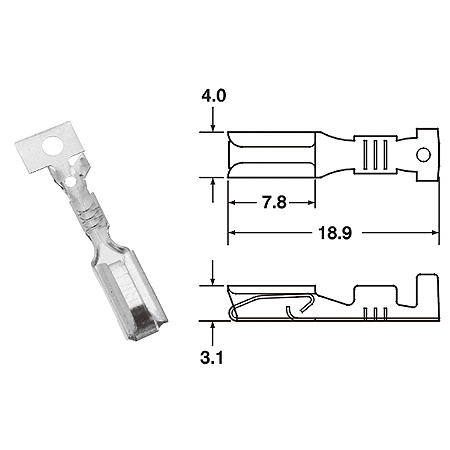

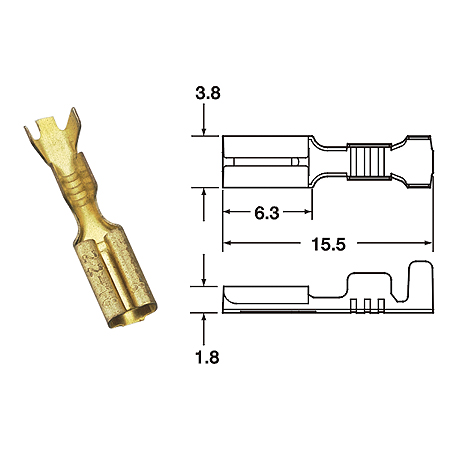

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| FM110-01B28 |
22-18 |
0.3-0.8 |
Brass |
Tin |
10000 |
CDM-93014-M |
CDT-93014-M |
| FM110-01B98 |
22-18 |
0.3-0.8 |
Brass |
None |
10000 |
CDM-93014-M |
CDT-93014-M |
| FM110-01BT8 |
22-18 |
0.3-0.8 |
Brass |
Pre-Tin |
10000 |
CDM-93014-M |
CDT-93014-M |
|
|
|

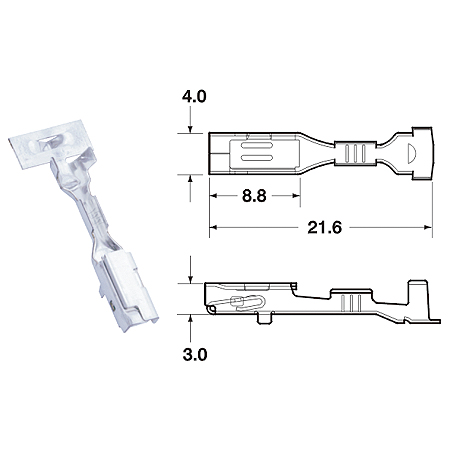

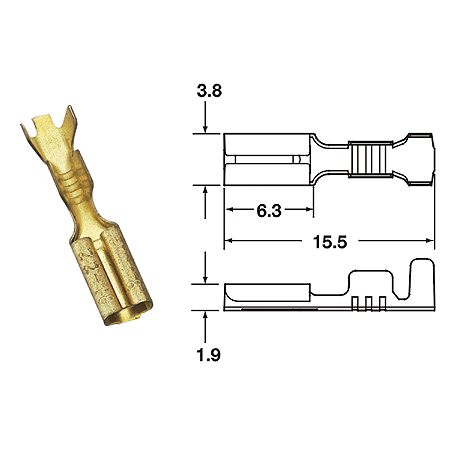

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| ◎FM110-02B65 |
22-18 |
0.3-0.8 |
Brass |
Nickel-gold |
10000 |
CDM-98004-M |
CDT-98004-M |
| FM110-02B25 |
22-18 |
0.3-0.8 |
Brass |
Tin |
10000 |
CDM-98004-M |
CDT-98004-M |
| FM110-02B95 |
22-18 |
0.3-0.8 |
Brass |
None |
10000 |
CDM-98004-M |
CDT-98004-M |
| FM110-02BT5 |
22-18 |
0.3-0.8 |
Brass |
Pre-Tin |
10000 |
CDM-98004-M |
CDT-98004-M |
|
|
|

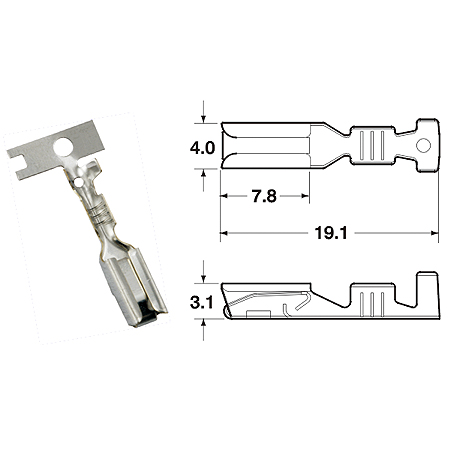

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| FM110-03B25 |
22-16 |
0.3-1.4 |
Brass |
Tin |
10000 |
CDM-93037-M |
CDT-93037-M |
| FM110-03B95 |
22-16 |
0.3-1.4 |
Brass |
None |
10000 |
CDM-93037-M |
CDT-93037-M |
| FM110-03BT5 |
22-16 |
0.3-1.4 |
Brass |
Pre-Tin |
10000 |
CDM-93037-M |
CDT-93037-M |
|
|
|

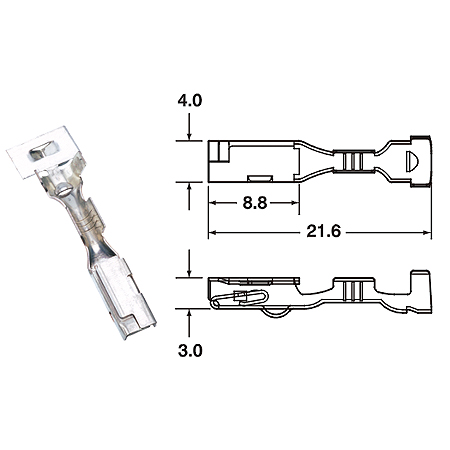

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| FM110-04B28 |
22-16 |
0.3-1.4 |
Brass |
Tin |
10000 |
CDM-98002-M |
CDT-98002-M |
| FM110-04B98 |
22-16 |
0.3-1.4 |
Brass |
None |
10000 |
CDM-98002-M |
CDT-98002-M |
| FM110-04BT8 |
22-16 |
0.3-1.4 |
Brass |
Pre-Tin |
10000 |
CDM-98002-M |
CDT-98002-M |
|
UL/CUL ALL LISTED
◎MM110-02B9,FM110-02B65 : NOT UL AND CUL LISTED |
TERMINAL
|
|

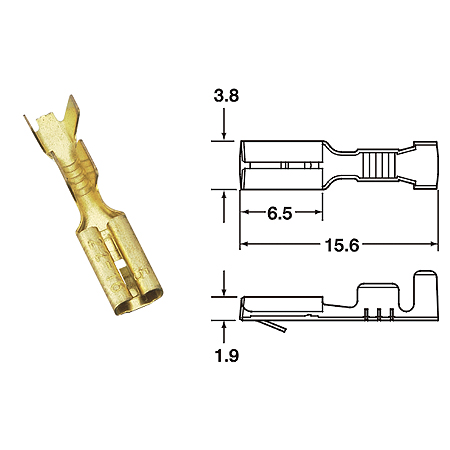

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| 1201A0265 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
5000 |
CDM-93110-S |
CDT-93110-S |
| 1201A0267 |
14 |
2.0 |
Brass |
Pre-Tin |
4000 |
CDM-96025-L |
CDT-96025-L |
|
|
|

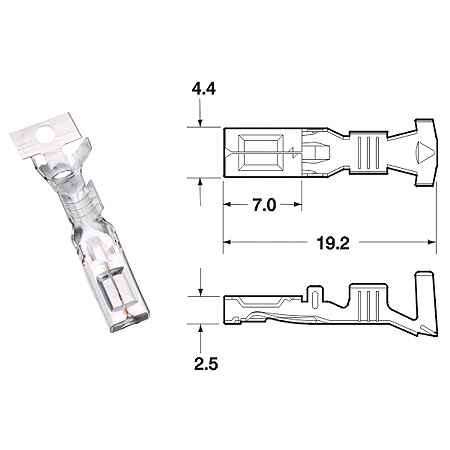

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| FM110-07B95 |
22-16 |
0.3-1.25 |
Brass |
None |
10000 |
CDM-98005-M |
CDT-98005-M |
|
|
|

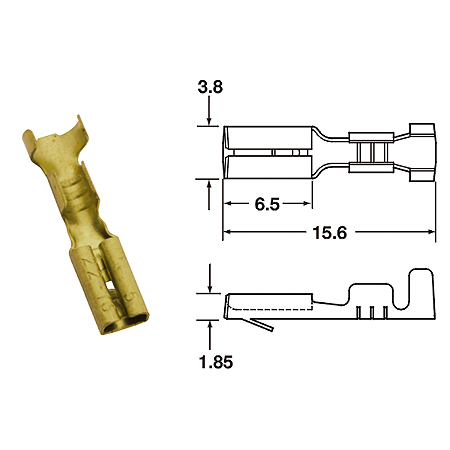

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| 1101A0336 |
20-16 |
0.5-1.0 |
Brass |
Pre-Tin |
3500 |
CDM-98007-M |
CDT-98007-M |
|
|
|

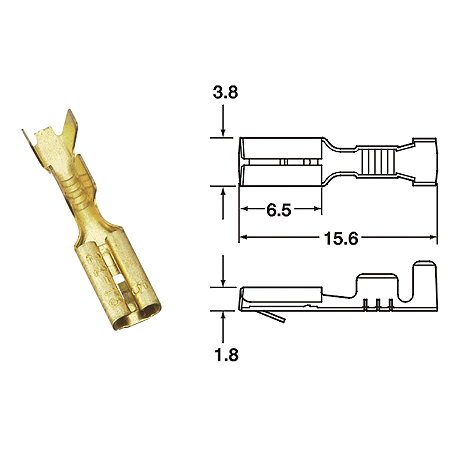

| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| 1211A0066 |
16 |
1.25 |
Copper Alloy |
Pre-Tin |
2500 |
CDM-94126-M |
CDT-94126-M |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| 1211A0070 |
22 |
0.3 |
Copper Alloy |
Pre-Tin |
3000 |
CDM-94129-S |
CDT-94129-S |
| 1211A0071 |
18 |
0.85 |
Copper Alloy |
Pre-Tin |
3000 |
CDM-94129-M |
CDT-94129-M |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| 1201A0265 |
22-20 |
0.3-0.5 |
Brass |
Pre-Tin |
5000 |
CDM-98006-S |
CDT-98006-S |
| 1201A0267 |
14 |
2.0 |
Brass |
Pre-Tin |
4000 |
CDM-98006-L |
CDT-98006-L |
|
|
|
| ITEM NO. |
WIRE RANGE |
MATERIAL |
PLATINGS |
Q'TY REEL |
APPLICATOR |
DIES |
| A.W.G. |
mm2 |
| 1211A0610 |
22-20 |
0.3-0.6 |
Copper Alloy |
Pre-Tin |
3000 |
CDM-96027-S |
CDT-96027-S |
|
|
|
|
|
