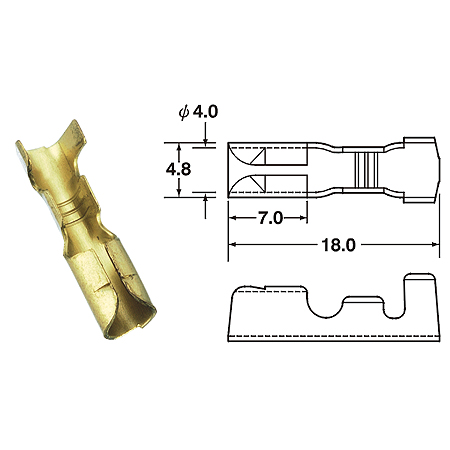

Other    BULLET TERMINAL

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.8mm2 ~2.0mm2 (18AWG~14AWG) Maximum Electric Current 25A

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 MPM350-01B2 18-16 0.8-1.4 Brass Tin 8000 CDM-96012-M CDT-96012-M MPM350-01B9 18-16 0.8-1.4 Brass None 8000 CDM-96012-M CDT-96012-M MPM350-01BT 18-16 0.8-1.4 Brass Pre-Tin 8000 CDM-96012-M CDT-96012-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 MPM400-01B2 18-16 0.8-1.4 Brass Tin 7000 CDM-96017-M CDT-96017-M MPM400-01B9 18-16 0.8-1.4 Brass None 7000 CDM-96017-M CDT-96017-M MPM400-01BT 18-16 0.8-1.4 Brass Pre-Tin 7000 CDM-96017-M CDT-96017-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 MPM400-02B9L 16-14 1.4-2.0 Brass None 500 CDM-98016-L CDT-98016-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FRM350-01B2 18-16 0.8-1.4 Brass Tin 8000 CDM-96012-M CDT-96012-M FRM350-01B9 18-16 0.8-1.4 Brass None 8000 CDM-96012-M CDT-96012-M FRM350-01BT 18-16 0.8-1.4 Brass Pre-Tin 8000 CDM-96012-M CDT-96012-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FRM400-01B2 18-16 0.8-1.4 Brass Tin 7000 CDM-96017-M CDT-96017-M FRM400-01B9 18-16 0.8-1.4 Brass None 7000 CDM-96017-M CDT-96017-M FRM400-01BT 18-16 0.8-1.4 Brass Pre-Tin 7000 CDM-96017-M CDT-96017-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FRM400-02B9L 16-14 1.4-2.0 Brass None 500 CDM-98017-M CDT-98017-M
