060 Series    060 SMTO SWP SERIES UNSEALED

SPECIFICATIONS Material Connector - Male Terninal COPPER ALLOY Female Terninal COPPER ALLOY Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

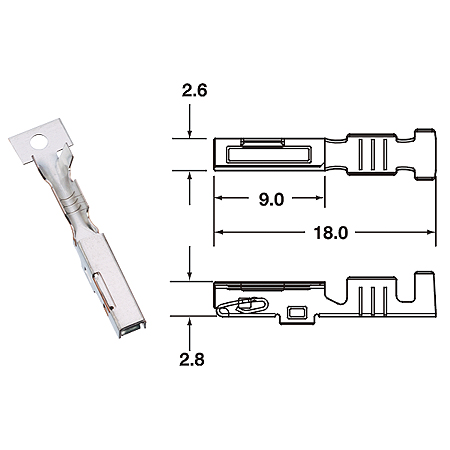

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1111A0020 22-20 0.3-0.5 Copper Alloy Pre-Tin 5000 CDM-94123-S CDT-94123-S 1111A0021 18-16 0.85-1.25 Copper Alloy Pre-Tin 5000 CDM-94123-M CDT-94123-M 1111A0022 14 2.0 Copper Alloy Pre-Tin 5000 CDM-94123-L CDT-94123-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0020 22-20 0.3-0.5 Copper Alloy Pre-Tin 5000 CDM-95005-S CDT-95005-S 1211A0021 18-16 0.85-1.25 Copper Alloy Pre-Tin 4000 CDM-95005-M CDT-95005-M 1211A0022 14 2.0 Copper Alloy Pre-Tin 4000 CDM-95005-L CDT-95005-L
