090 Series    090 SMTO TS、DL、SL SERIES UNSEALED

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal BRASS OR COPPER ALLOY Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

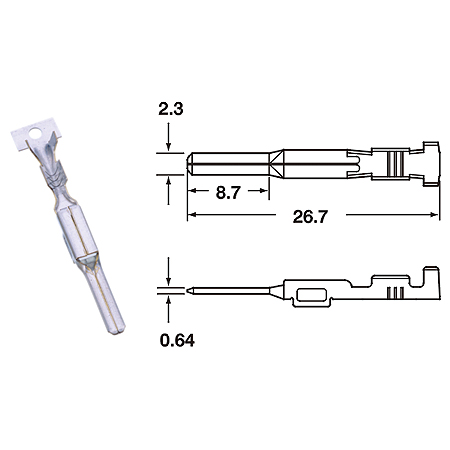

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0010 22-20 0.3-0.5 Brass Pre-Tin 5000 CDM-94120-S CDT-94120-S 1101A0011 20-16 0.5-1.25 Brass Pre-Tin 5000 CDM-94120-M CDT-94120-M 1101A0012 14 2.0 Brass Pre-Tin 5000 CDM-94120-L CDT-94120-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1201A0010 22-20 0.3-0.5 Brass Pre-Tin 5000 CDM94119-S CDT-94119-S 1201A0011 20-16 0.5-1.25 Brass Pre-Tin 4000 CDM-94119-M CDT-94119-M 1201A0012 14 2.0 Brass Pre-Tin 4000 CDM-94119-L CDT-94119-L 1211A0012 14 2.0 Copper Alloy Pre-Tin 4000 CDM-94119-L CDT-94119-L
